Overview : Design a product for the Covi-19 pandemic, that people can use in their daily lives, to fight against any unwanted diseases-
A door bell with a built-in sensor that will ring the
bell and dispense sanitizer.
Role : Ideation, Design, 3D Modelling, Leading the team and pitching to the client. (Within a group of 3)
Tools : Rhinoceros 3D, Vray, Onshape, Adobe Illustrator
Context : Master's Workshop
Designing a solution for the Post-Pandemic World :
The Story
During the Covid -19 Pandemic, all our lives had changed.
Our needs, behaviors and habits all changed.
If you were to touch something, you would think twice and then sanitize afterwards. The thought of touching random objects was a nightmare.
Thus began the idea of a Doorbell, with a built- in sensor, that would dispense liquid sanitizer and ring the bell simultaneously.
So we thought, why not design an everyday product, in a manner that can reduce the stress of contamination and physical touch?
Our Criteria for the product
Technical
User
Contextual
Satisfaction and
sense of security
Easy to place
(hang and refill)
Health and Safety
No physical contact
Hygiene
Pump to carry
sanitizer from
container to nozzle
Used in houses
offices
Ease of use
(distant)
Placed on wall
Capacity and usage
detection
Sensors make sure
nothing is touched
Light indicator for
dispensing liquid

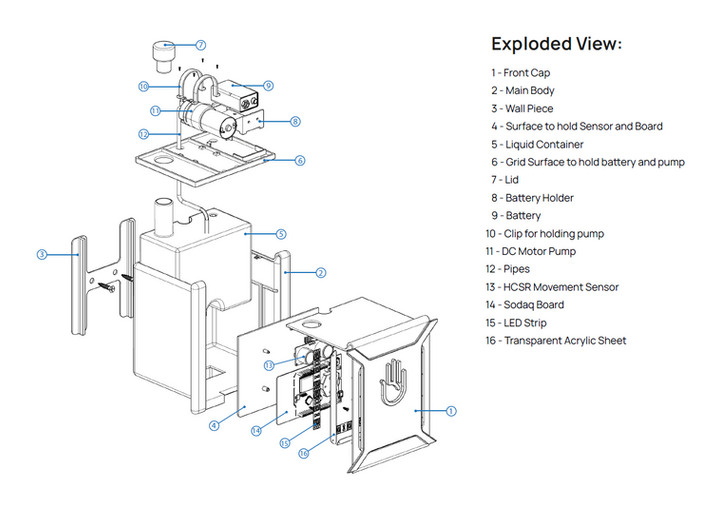

Exploded View

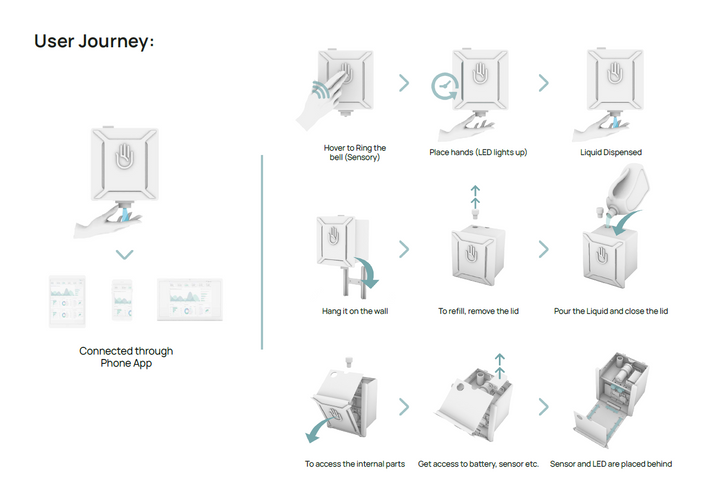

User Journey
To access the battery, sensor, etc.
Hover to ring the
bell (sensor)
Place hand underneath
(LED lights up)
Liquid dispenses
Hang it on the wall
To refill, remove the lid
Pour the liquid and close the lid
Open to access internal parts
To access the battery, sensor, etc.
Connected through phone application
Sensor and LED are placed behind
Final Renders
Next Steps
-
Design an application for the doorbell, which will allow users to control it through their phones. With a focus on - Maintenance, sanitizer capacity, doorbell sound, battery, etc.
